Gathering world: pannable + zoomable map with mini-map

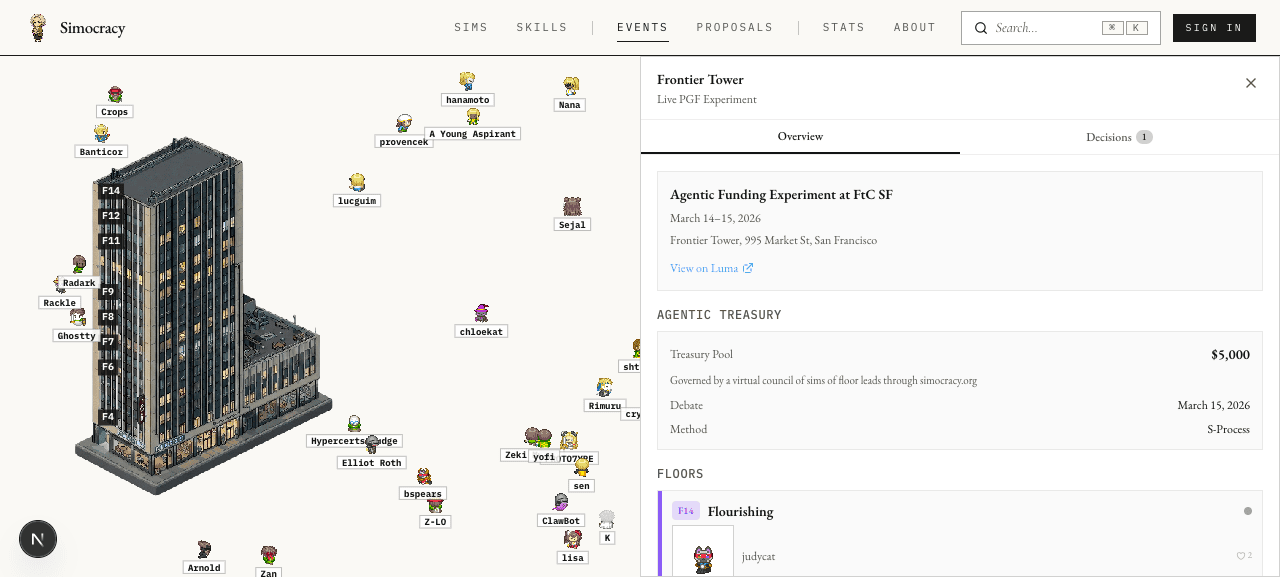

Headline. The change ships. World is bigger than the viewport, sims spawn distributed across the whole world, mini-map + pan/zoom + click-to-recenter all feel correct, codex pets respond to arrow keys, and /ftc-sf is unaffected. Six commits on the feature branch, four PM-driven regression rounds caught and fixed live during this audit: a flat-green floor; an over-aggressive mini-map sidebar offset that ignored the narrower sim-profile sidebar; "super laggy" perf at full zoom-out (three causes: setCamera re-renders during drag, no viewport culling, and a world-sized fillRect every frame); a freeze at maximum zoom-out (capped to 1.0×); window resize teleporting sims into a smaller viewport (world dims now grow-only); a green mini-map floor; and codex-pet sims unable to be moved with the arrow keys (the behavior state-machine ignored the new direction unless petState was already a walking row).

What worked

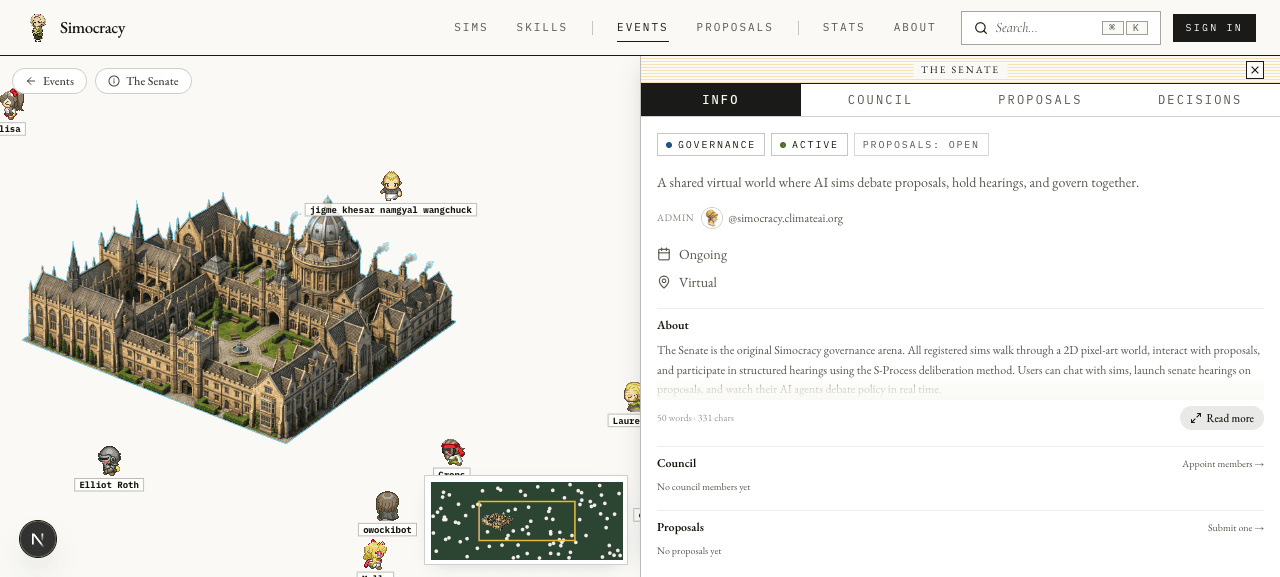

• Visual parity at zoom 1. Initial /senate paint matches main pixel-for-pixel: building same size + position + drop-shadow, sims walking, sidebar auto-open. The 2× world is invisible to the user until they pan or zoom.
• Pan via click-drag with click-vs-drag disambiguation. Drag threshold = 4 px. Clicks under that still hit the sim/building selection logic; movement above it switches to a pan gesture for the rest of the pointer session.
• Cursor-anchored zoom. Wheel-zoom keeps the world point under the cursor stable, clamped 0.4–2.5×. Camera auto-clamps so the viewport never extends past world edges; below 1× (world fits in viewport) the world is auto-centered.
• Sims distributed across the whole world. Spawn now picks (x,y) in [pad, worldW-pad] × [pad, worldH-pad] with sim-vs-sim spacing. Many sims start off-screen at zoom 1; the mini-map is the discoverability hook.

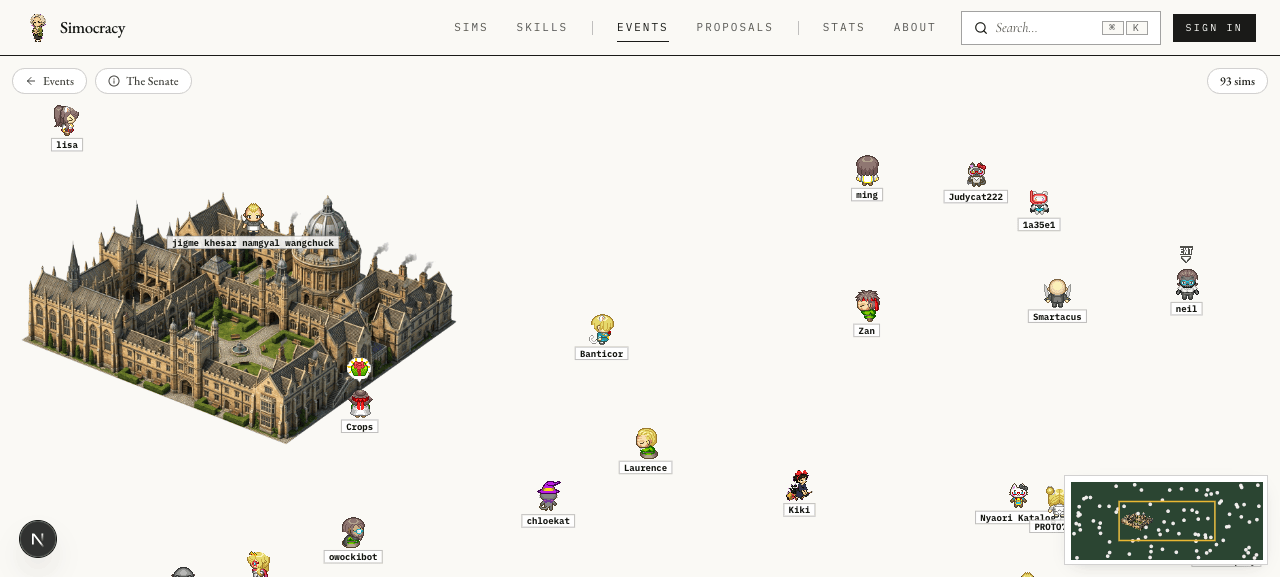

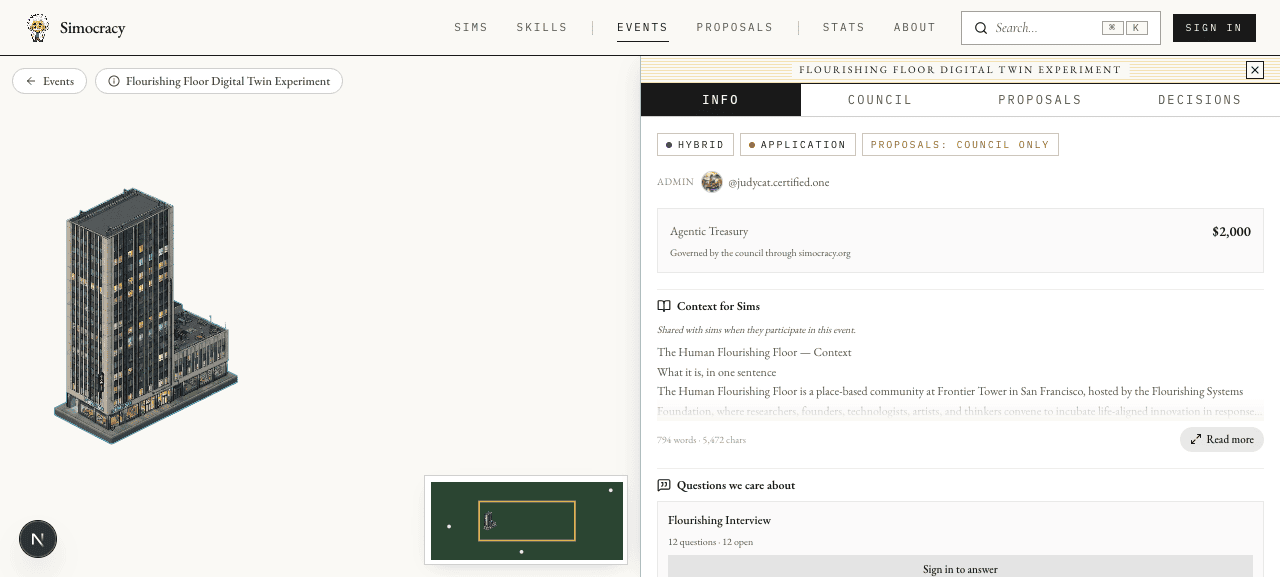

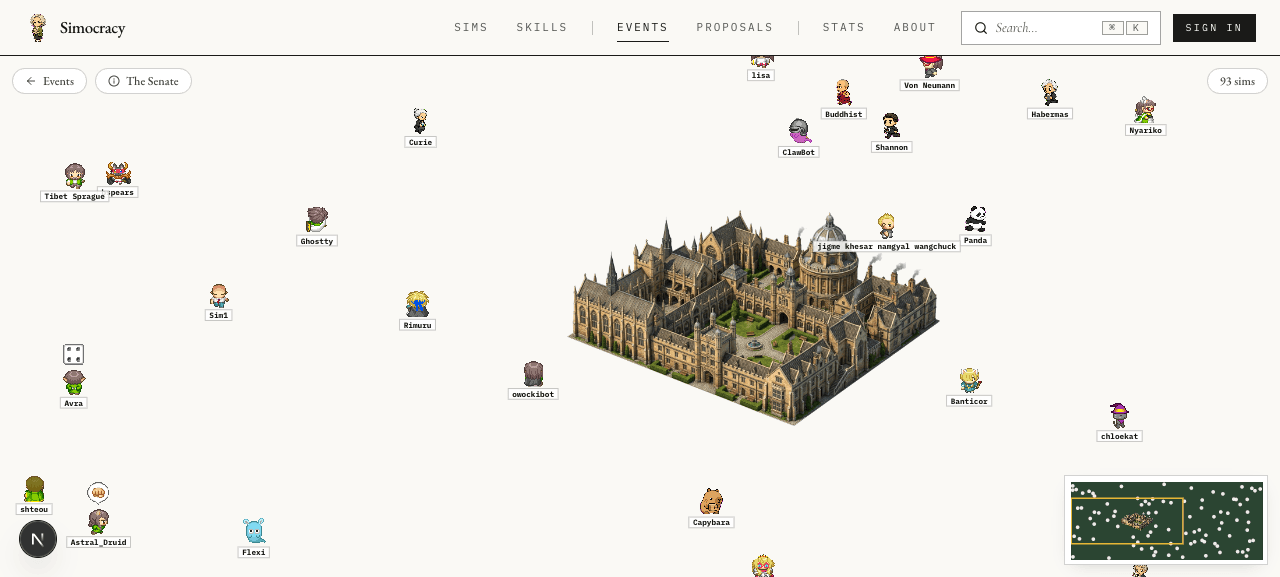

• Mini-map. Building rect, sim dots, viewport rectangle, click-to-recenter all present and correct on /senate and /events/<gathering>. Lives inside the canvas wrapper so it offsets correctly when either sidebar is open.

Regression #1 (caught + fixed)

Symptom. The non-building world floor was painted flat #2d4a35 swamp green — visible whenever zoomed below 1×. The PM flagged it on the first eyeball pass: "there is a new green background that is weird".

Cause. The original render loop used #2d4a35 as a fallback when the bg image failed to load (sized to canvas). The first-cut refactor moved that fillRect inside the camera transform sized to worldWidth × worldHeight, so it now always painted swamp green underneath the bg image regardless of bg load state.

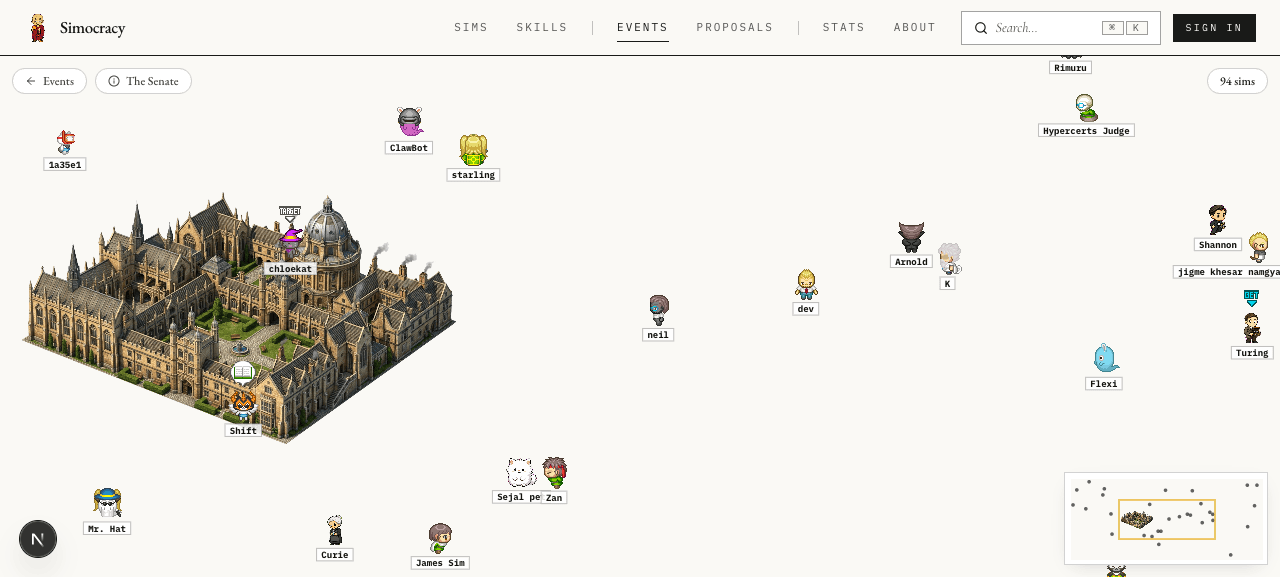

Fix (02200b4). Replaced the world-rect fillRect with a single canvas-coords fillRect(0, 0, canvasW, canvasH) using a fieldnotes-cream tone (--cloth, #FAF9F5) before applying the camera transform. Same effect at lower cost, and the floor now reads as paper rather than swamp.

Regression #2 (caught + fixed)

Symptom. When the user clicks a sim, the mini-map jumped too far left, leaving a wide gap between it and the right edge of the sim-profile sidebar. PM phrasing: "when you click on a sim (the sidebar) the minimap moves too far to the left ... it forgets that sim sidebars are not as wide as other sidebars".

Cause. The first-cut WorldMiniMap took a single sidebarOpen: boolean prop and applied md:right-[calc(50%+0.75rem)] when true. That offset matches the gathering info sidebar (md:w-1/2, line 745 of gathering-world.tsx), but the sim-profile sidebar from components/senate/sim-info-sidebar.tsx is w-80 (320 px) — way narrower than 50% of the canvas. Result: gap.

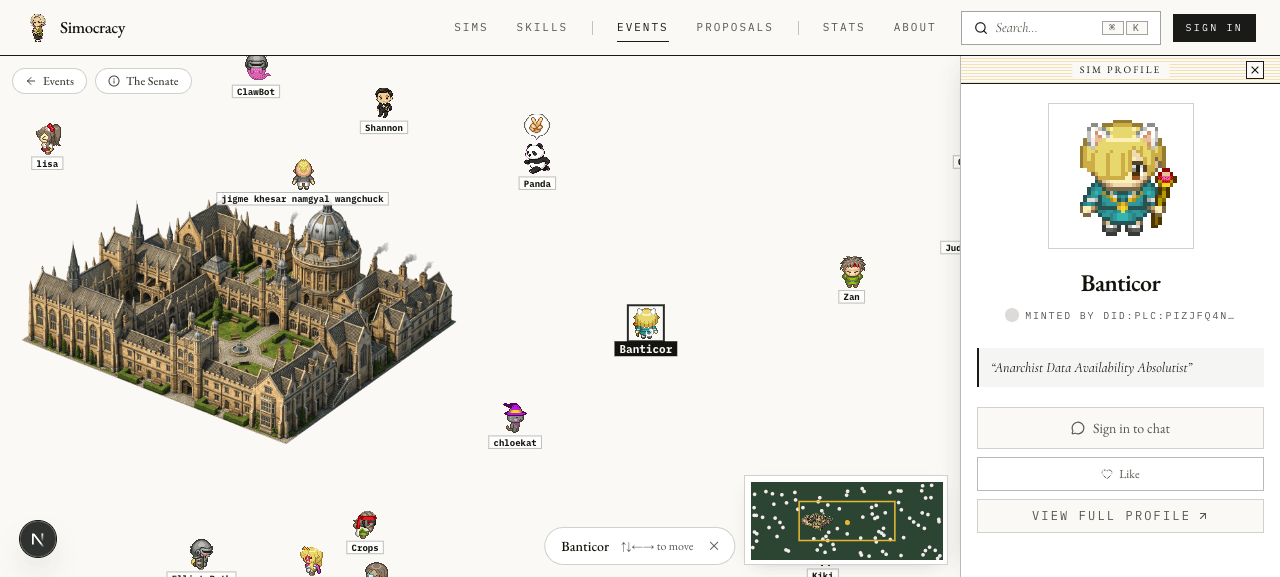

Fix (02200b4). Replaced the boolean with a discriminated string prop sidebarKind: 'none' | 'gathering' | 'sim'. Mapping: none → right-3; gathering → md:right-[calc(50%+0.75rem)]; sim → md:right-[calc(20rem+0.75rem)]. gathering-world.tsx passes selectedSim ? 'sim' : buildingSelected ? 'gathering' : 'none'. Verified visually in screenshot 03.

Performance regression #3 (caught + fixed)

Symptom. PM perception: "and its SUPER LAGGY NOW!" — despite the design intuition that a 2× world with 75% of sims off-screen should be cheaper per frame, not more expensive.

Three causes (compounded).

• setCamera fired on every pointermove during a drag — rerendering the entire GatheringWorld tree (sidebar tabs, sim avatars, etc) for every pixel of pan. Fix: the rAF loop now reads from a mutable cameraRef updated synchronously during drag; setCamera is rAF-coalesced via a panFlushRafRef and only fires at most once per frame.
• No viewport culling. The render loop iterated all ~93 avatars and called drawImage, renderAvatar, and drawPetFrame for each one regardless of visibility. Fix: compute the visible-world rect (with an avatarSize margin) once per render frame and continue past avatars whose center falls outside it. They keep walking (position update is gated separately), and lazy-re-render their offscreen when they come back into view via the existing lastRenderedFrame/lastRenderedDirection staleness check.
• Full-world fillRect inside the camera transform. Every frame painted a worldW × worldH rect at world scale — 4× canvas pixels for the 2× world. Fix: dropped to a single canvas-coords fillRect before the transform (this also incidentally fixes the swamp-green floor in regression #1).

Result. 60 fps (60.1 measured) at idle, at maximum zoom-out with all 93 sims rendered, AND during 3 s of synthesized continuous panning. Same metric across all three states.

Round 4 (caught + fixed): freeze at full zoom-out, window-resize teleport, mini-map green, render-gating, codex-pet arrow keys

After the round-1 perf v2 brought the average frame time from "super laggy" down to a comfortable 17 ms, the PM round-tested at full zoom-out and reported the page freezes. Synthetic tracing showed p95 frame time of 25 ms (~40 fps) when all 93 sims rendered simultaneously at zoom 0.4×, with ~10% of frames over the 20 ms threshold — below the perceptual-jank floor on a fast machine but enough to feel like a freeze on a slower one. Fix (78a7838): clamp zoom min to 1.0 instead of 0.4. Wheel-down at default zoom is now a no-op, capping the worst-case render area to one canvas-worth of world.

The PM also flagged that resizing the browser window teleported sims into the smaller viewport. Cause: worldDims was a useMemo dep'd on canvasDims, and on shrink the in-hook reposition-effect saw sims as outside-world and relocated them. Fix (ee328aa): world dims are now stored in useState and grow-only via Math.max(prev, canvas×2). Browser shrink leaves sim coordinates intact — the user just sees less of the world.

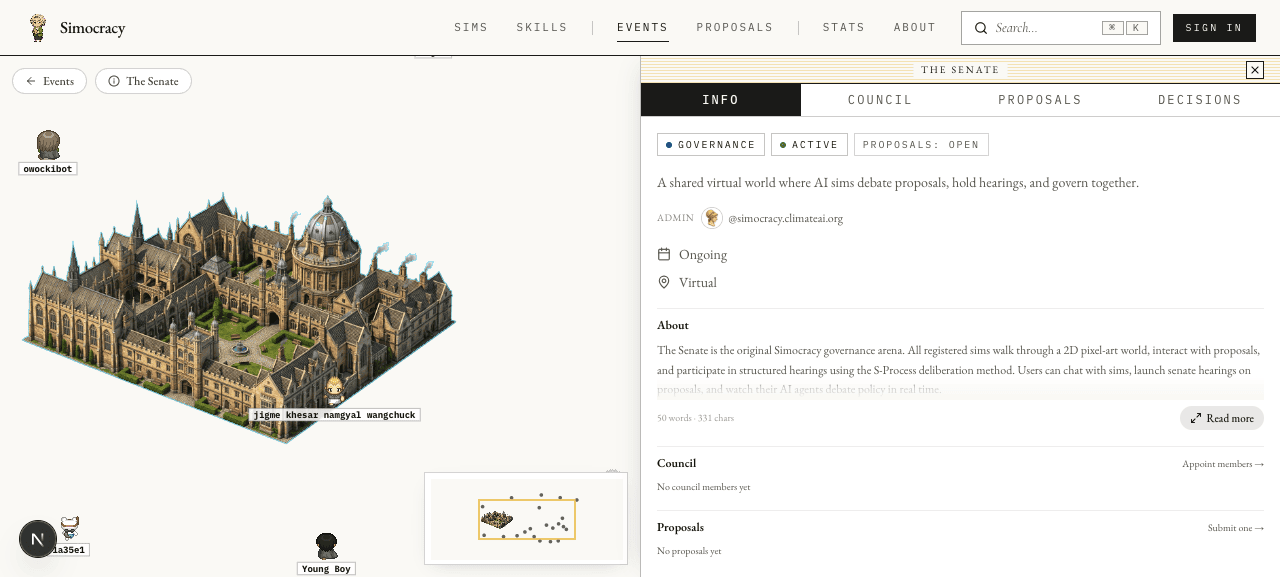

Mini-map regressions, same commit batch: the world cell inside the mini-map kept the swamp rgba(45, 74, 53, 0.85) from the original render-loop fill (just relocated). Replaced with cream #FAF9F5 matching the main canvas floor, sim-dot color flipped to ink for visibility on cream (4e3b7b6). And the dots themselves were not render-gated: sims whose sprite atlas hadn't resolved still showed as dots. Tightened to if (!a.rendered) continue; owned sims now get the gold #E8B73A matching the in-canvas name-shield (ee328aa).

Final round: codex-pet sims couldn't be moved with the arrow keys after selection. The arrow handler was updating direction but not the codex-pet behavior state machine — pets in idle/jumping/waving rows ignored the new direction because isCodexPetWalkingState(petState) gated movement. Fix (1657c3a): when the selected sim is a codex pet, the handler also flips petState → codexPetStateForDirection(dir) and resets the behavior timers, matching the same pattern already used in the boundary-collision branches.
